Pie Options

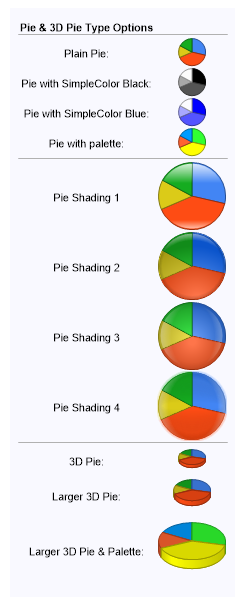

Demonstrates several features of the Pie microChart.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender, EventArgs e)
{
// Demonstrates several features of the Pie microChart.
Chart.TempDirectory = "temp";
Chart.Background.Color = Color.FromArgb(249,249,255);
Chart.Size = "240x640";
string s = "<block fStyle='Bold'>Pie & 3D Pie Type Options<block><hr>";
s += "Plain Pie: <Chart:Pie values='10,14,5,6'>";
// Pie using the SimpleColor feature.
s += "<row>Pie with SimpleColor Black: <Chart:Pie values='10,14,5,6' color='Black' >";
s += "<row>Pie with SimpleColor Blue: <Chart:Pie values='10,14,5,6' color='Blue' >";
// Using a custom palette
s += "<row>Pie with palette: <Chart:Pie values='10,14,5,6' colors='#31FF31,#FFFF00,#FF6331,#009CFF' ><hr>";
// Shading effect modes are available with 2D pie microCharts.
s += "<row>Pie Shading 1 <Chart:Pie values='10,14,5,6' shading='1' size='70'>";
s += "<row>Pie Shading 2 <Chart:Pie values='10,14,5,6' shading='2' size='70'>";
s += "<row>Pie Shading 3 <Chart:Pie values='10,14,5,6' shading='3' size='70'>";
s += "<row>Pie Shading 4 <Chart:Pie values='10,14,5,6' shading='4' size='70'><hr>";
// 3D pie microCharts.
s += "<row>3D Pie: <Chart:Pie3D values='10,14,5,6'>";
s += "<row>Larger 3D Pie: <Chart:Pie3D values='10,14,5,6' size='40' >";
s += "<row>Larger 3D Pie & Palette: <Chart:Pie3D values='10,14,5,6' size='70' colors='#31FF31,#FFFF00,#FF6331,#009CFF'>";
Chart.ObjectChart = new dotnetCHARTING.Label(s);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates several features of the Pie microChart.
Chart.TempDirectory = "temp"
Chart.Background.Color = Color.FromArgb(249,249,255)
Chart.Size = "240x640"
Dim s As String = "<block fStyle='Bold'>Pie & 3D Pie Type Options<block><hr>"
s &= "Plain Pie: <Chart:Pie values='10,14,5,6'>"
' Pie using the SimpleColor feature.
s &= "<row>Pie with SimpleColor Black: <Chart:Pie values='10,14,5,6' color='Black' >"
s &= "<row>Pie with SimpleColor Blue: <Chart:Pie values='10,14,5,6' color='Blue' >"
' Using a custom palette
s &= "<row>Pie with palette: <Chart:Pie values='10,14,5,6' colors='#31FF31,#FFFF00,#FF6331,#009CFF' ><hr>"
' Shading effect modes are available with 2D pie microCharts.
s &= "<row>Pie Shading 1 <Chart:Pie values='10,14,5,6' shading='1' size='70'>"
s &= "<row>Pie Shading 2 <Chart:Pie values='10,14,5,6' shading='2' size='70'>"
s &= "<row>Pie Shading 3 <Chart:Pie values='10,14,5,6' shading='3' size='70'>"
s &= "<row>Pie Shading 4 <Chart:Pie values='10,14,5,6' shading='4' size='70'><hr>"
' 3D pie microCharts.
s &= "<row>3D Pie: <Chart:Pie3D values='10,14,5,6'>"
s &= "<row>Larger 3D Pie: <Chart:Pie3D values='10,14,5,6' size='40' >"
s &= "<row>Larger 3D Pie & Palette: <Chart:Pie3D values='10,14,5,6' size='70' colors='#31FF31,#FFFF00,#FF6331,#009CFF'>"
Chart.ObjectChart = New dotnetCHARTING.Label(s)
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
