Column Options

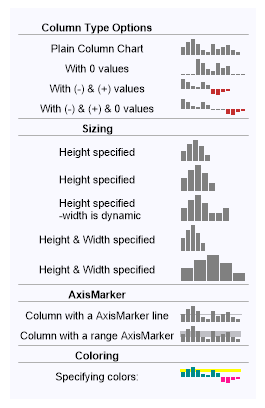

Demonstrates several features of the Column microChart.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
void Page_Load(Object sender, EventArgs e)
{
// Demonstrates several features of the Column microChart.
Chart.TempDirectory = "temp";
Chart.Background.Color = Color.FromArgb(249,249,255);
Chart.Size = "280x460";
string s = "<block fStyle='Bold'>Column Type Options<block><hr>";
s += "Plain Column Chart <Chart:Column values='5,8,10,7,3,2,7,4,5,6,3,2' >";
// Zero values are always shown so they can be used as placeholders.
s += "<row>With 0 values <Chart:Column values='0,0,0,10,7,3,2,7,4,5,0,0,0' >";
// Negative values are colored in red by default.
s += "<row>With (-) & (+) values <Chart:Column values='10,7,3,2,7,4,-5,-6,-3,-2' >";
s += "<row>With (-) & (+) & 0 values <Chart:Column values='10,7,3,2,7,4,0,0,0,-5,-6,-3,-2' >";
// When a column microChart width is not specified it is determined automatically.
s += "<hr><block fStyle='Bold'>Sizing<block><hr>";
s += "Height specified <Chart:Column values='5,8,10,7,3' height='25'>";
// When only the height is specified, the column widths are based on the height and chart width is determined by the column width and number of elements shown.
s += "<row>Height specified <Chart:Column values='5,8,10,7,3' height='30'>";
s += "<row>Height specified<br> -width is dynamic <Chart:Column values='5,8,10,7,3,3,5' height='30'>";
s += "<row>Height & Width specified <Chart:Column values='5,8,10,7,3' height='30' width='30'>";
s += "<row>Height & Width specified <Chart:Column values='5,8,10,7,3' height='30' width='70'>";
s += "<hr><block fStyle='Bold'>AxisMarker<block><hr>";
// A reference line can be used by specifying a value in the AxisMarker parameter.
s += "Column with a AxisMarker line <Chart:Column values='5,8,10,7,3,2,7,4,5,6,3,2' AxisMarker='5'>";
// A portion of the y axis can be marked by using two values in the AxisMarker parameter.
s += "<row>Column with a range AxisMarker <Chart:Column values='5,8,10,7,3,2,7,4,5,6,3,2' AxisMarker='3,7'>";
// Specifying colors.
s += "<hr><block fStyle='Bold'>Coloring<block><hr>";
s += "Specifying colors: <Chart:Column values='5,8,10,7,3,2,7,4,-5,-6,-3,-2' AxisMarker='5,8' colors='DarkCyan,DeepPink,Yellow'>";
Chart.ObjectChart = new dotnetCHARTING.Label(s);
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates several features of the Column microChart.
Chart.TempDirectory = "temp"
Chart.Background.Color = Color.FromArgb(249,249,255)
Chart.Size = "280x460"
Dim s As String = "<block fStyle='Bold'>Column Type Options<block><hr>"
s &= "Plain Column Chart <Chart:Column values='5,8,10,7,3,2,7,4,5,6,3,2' >"
' Zero values are always shown so they can be used as placeholders.
s &= "<row>With 0 values <Chart:Column values='0,0,0,10,7,3,2,7,4,5,0,0,0' >"
' Negative values are colored in red by default.
s &= "<row>With (-) & (+) values <Chart:Column values='10,7,3,2,7,4,-5,-6,-3,-2' >"
s &= "<row>With (-) & (+) & 0 values <Chart:Column values='10,7,3,2,7,4,0,0,0,-5,-6,-3,-2' >"
' When a column microChart width is not specified it is determined automatically.
s &= "<hr><block fStyle='Bold'>Sizing<block><hr>"
s &= "Height specified <Chart:Column values='5,8,10,7,3' height='25'>"
' When only the height is specified, the column widths are based on the height and chart width is determined by the column width and number of elements shown.
s &= "<row>Height specified <Chart:Column values='5,8,10,7,3' height='30'>"
s &= "<row>Height specified<br> -width is dynamic <Chart:Column values='5,8,10,7,3,3,5' height='30'>"
s &= "<row>Height & Width specified <Chart:Column values='5,8,10,7,3' height='30' width='30'>"
s &= "<row>Height & Width specified <Chart:Column values='5,8,10,7,3' height='30' width='70'>"
s &= "<hr><block fStyle='Bold'>AxisMarker<block><hr>"
' A reference line can be used by specifying a value in the AxisMarker parameter.
s &= "Column with a AxisMarker line <Chart:Column values='5,8,10,7,3,2,7,4,5,6,3,2' AxisMarker='5'>"
' A portion of the y axis can be marked by using two values in the AxisMarker parameter.
s &= "<row>Column with a range AxisMarker <Chart:Column values='5,8,10,7,3,2,7,4,5,6,3,2' AxisMarker='3,7'>"
' Specifying colors.
s &= "<hr><block fStyle='Bold'>Coloring<block><hr>"
s &= "Specifying colors: <Chart:Column values='5,8,10,7,3,2,7,4,-5,-6,-3,-2' AxisMarker='5,8' colors='DarkCyan,DeepPink,Yellow'>"
Chart.ObjectChart = New dotnetCHARTING.Label(s)
End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
