Info Grid Multi

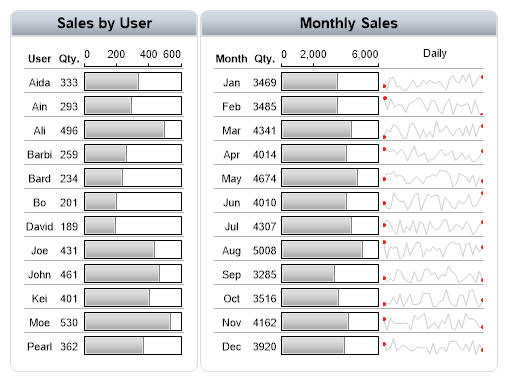

Demonstrates using multiple DB driven infoGrids inside annotations.
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<%@ Import Namespace="dotnetCHARTING.Mapping" %>
<script runat="server">
void Page_Load(Object sender, EventArgs e)
{
// Demonstrates using multiple DB driven infoGrids inside annotations.
Chart.Size = "500x380";
Chart.TempDirectory = "temp";
Chart.Debug = true;
SeriesCollection mySC = getOrders();
Annotation an = new Annotation(getGridText(mySC[0]));
an.HeaderLabel.Text = "Sales by User";
an.Position = new Point(10, 10);
Annotation an2 = new Annotation(getGridTextMontly(getItemsMonthly()[0]));
an2.Position = new Point(200, 10);
an2.HeaderLabel.Text = "Monthly Sales";
setAnStyling(an);
setAnStyling(an2);
Chart.Annotations.Add(an, an2);
}
// Settings common to both annotations.
void setAnStyling(Annotation an)
{
an.Padding = 10;
an.DynamicSize = false;
an.HeaderBackground.Color = Color.LightSteelBlue;
an.Label.Font = new Font("Arial", 8);
an.Background.Color = Color.White;
an.HeaderLabel.Font = new Font("Arial", 11, FontStyle.Bold);
an.HeaderBackground.ShadingEffectMode = ShadingEffectMode.Seven;
an.DefaultCorner = BoxCorner.Round;
}
string getGridText(Series s)
{
StringBuilder sb = new StringBuilder();
sb.Append("<block fStyle='Bold' vAlign='Center'>User<block fStyle='Bold' vAlign='Center'>Qty.<Chart:Scale min='0' max='600'> <hr>");
int i = 0;
foreach (Element e in s.Elements)
{
sb.Append("<block vAlign='Center'>" + e.Name + "<block hAlign='Center' vAlign='Center'>" + e.YValue + "<Chart:Bar shading='7' min='0' max='600' value='" + e.YValue + "'>");
if (i++ < s.Elements.Count - 1)
sb.Append("<hr>");
}
return sb.ToString();
}
string getGridTextMontly(Series s)
{
StringBuilder sb = new StringBuilder();
sb.Append("<block fStyle='Bold' vAlign='Center'>Month<block fStyle='Bold' vAlign='Center'>Qty.<Chart:Scale min='0' max='6000'><block> Daily<hr>");
int i = 0;
foreach (Element e in s.Elements)
{
string daily = getMonthValues(i + 1);
sb.Append("<block vAlign='Center'>" + e.Name + "<block hAlign='Center' vAlign='Center'>" + e.YValue + "<Chart:Bar shading='7' min='0' max='6000' value='" + e.YValue + "'><Chart:Sparkline values='" + daily + "' colors='Gray,Red'>");
if (i++ < s.Elements.Count - 1)
sb.Append("<hr>");
}
return sb.ToString();
}
SeriesCollection getOrders()
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.SqlStatement = @"SELECT Name,Sum(1) FROM Orders GROUP BY Name ORDER BY Name";
return de.GetSeries();
}
SeriesCollection getItemsMonthly()
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.StartDate = new System.DateTime(2022, 1, 1, 0, 0, 0);
de.EndDate = new System.DateTime(2022, 12, 31, 23, 59, 59);
de.DateGrouping = TimeInterval.Year;
de.SqlStatement = @"SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate";
return de.GetSeries();
}
string getMonthValues(int month)
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.StartDate = new System.DateTime(2022, month, 1, 0, 0, 0);
de.EndDate = de.StartDate.AddMonths(1);
de.DateGrouping = TimeInterval.Month;
de.SqlStatement = @"SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate";
SeriesCollection sc = de.GetSeries();
return sc[0].GetYValueList();
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<script runat="server">
Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates using multiple DB driven infoGrids inside annotations.
Chart.Size = "500x380"
Chart.TempDirectory = "temp"
Chart.Debug = True
Dim mySC As SeriesCollection = getOrders()
Dim an As Annotation = New Annotation(getGridText(mySC(0)))
an.HeaderLabel.Text = "Sales by User"
an.Position = New Point(10, 10)
Dim an2 As Annotation = New Annotation(getGridTextMontly(getItemsMonthly()(0)))
an2.Position = New Point(200, 10)
an2.HeaderLabel.Text = "Monthly Sales"
setAnStyling(an)
setAnStyling(an2)
Chart.Annotations.Add(an, an2)
End Sub
' Settings common to both annotations.
Sub setAnStyling(ByVal an As Annotation)
an.Padding = 10
an.DynamicSize = False
an.HeaderBackground.Color = Color.LightSteelBlue
an.Label.Font = New Font("Arial", 8)
an.Background.Color = Color.White
an.HeaderLabel.Font = New Font("Arial", 11, FontStyle.Bold)
an.HeaderBackground.ShadingEffectMode = ShadingEffectMode.Seven
an.DefaultCorner = BoxCorner.Round
End Sub
Function getGridText(ByVal s As Series) As String
Dim sb As StringBuilder = New StringBuilder()
sb.Append("<block fStyle='Bold' vAlign='Center'>User<block fStyle='Bold' vAlign='Center'>Qty.<Chart:Scale min='0' max='600'> <hr>")
Dim i As Integer = 0
For Each e As Element In s.Elements
sb.Append("<block vAlign='Center'>" & e.Name & "<block hAlign='Center' vAlign='Center'>" & e.YValue & "<Chart:Bar shading='7' min='0' max='600' value='" & e.YValue & "'>")
If i < s.Elements.Count - 1 Then
sb.Append("<hr>")
End If
i = i + 1
Next e
Return sb.ToString()
End Function
Function getGridTextMontly(ByVal s As Series) As String
Dim sb As StringBuilder = New StringBuilder()
sb.Append("<block fStyle='Bold' vAlign='Center'>Month<block fStyle='Bold' vAlign='Center'>Qty.<Chart:Scale min='0' max='6000'><block> Daily<hr>")
Dim i As Integer = 0
For Each e As Element In s.Elements
Dim daily As String = getMonthValues(i + 1)
sb.Append("<block vAlign='Center'>" & e.Name & "<block hAlign='Center' vAlign='Center'>" & e.YValue & "<Chart:Bar shading='7' min='0' max='6000' value='" & e.YValue & "'><Chart:Sparkline values='" & daily & "' colors='Gray,Red'>")
If i < s.Elements.Count - 1 Then
sb.Append("<hr>")
End If
i = i + 1
Next e
Return sb.ToString()
End Function
Function getOrders() As SeriesCollection
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.SqlStatement = "SELECT Name,Sum(1) FROM Orders GROUP BY Name ORDER BY Name"
Return de.GetSeries()
End Function
Function getItemsMonthly() As SeriesCollection
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.StartDate = New System.DateTime(2022, 1, 1, 0, 0, 0)
de.EndDate = New System.DateTime(2022, 12, 31, 23, 59, 59)
de.DateGrouping = TimeInterval.Year
de.SqlStatement = "SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate"
Return de.GetSeries()
End Function
Function getMonthValues(ByVal month As Integer) As String
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.StartDate = New System.DateTime(2022, month, 1, 0, 0, 0)
de.EndDate = de.StartDate.AddMonths(1)
de.DateGrouping = TimeInterval.Month
de.SqlStatement = "SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate"
Dim sc As SeriesCollection = de.GetSeries()
Return sc(0).GetYValueList()
End Function
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<dotnet:Chart ID="Chart" runat="server" />
</div>
</body>
</html>
