<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<script runat="server">

void Page_Load(Object sender, EventArgs e)
{

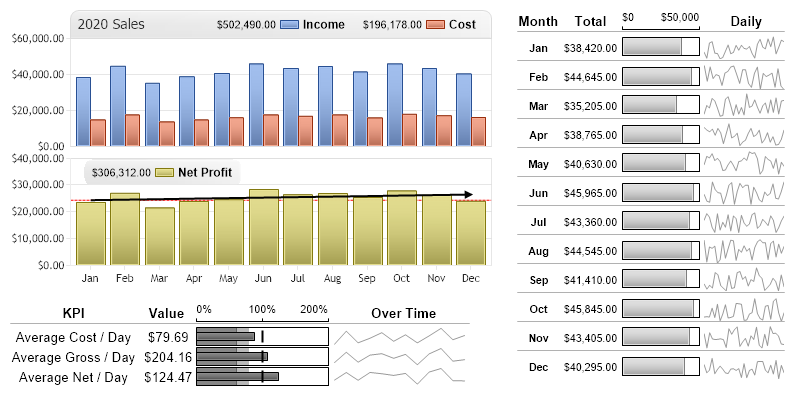

// Demonstrates a database driven digital dashboards utilizing a number of chart types including InfoGrids and MicroCharts.

Chart.TempDirectory = "temp";
Chart.ShadingEffectMode = ShadingEffectMode.Seven;
Chart.Type = ChartType.Combo;
Chart.Size = "500x300";
Chart.ShowDateInTitle = false;
Chart.Title = "2020 Sales";
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend;
Chart.DefaultFormatString = "Currency";
Chart.TitleBox.CornerTopLeft = BoxCorner.Round;
Chart.TitleBox.CornerTopRight = BoxCorner.Round;
Chart.DefaultAxis.TickNumberMaximum = 7;
Chart.DefaultLegendBox.DefaultEntry.Name = "<block fStyle='Bold' fSize='9'>%Name";
Chart.DefaultChartArea.Line.Color = Color.FromArgb(180, 220, 220, 220);
Chart.TitleBox.Background.ShadingEffectMode = ShadingEffectMode.Five;
Chart.TitleBox.Background.Color = Color.White;
SeriesCollection mySC = getSalesVsCost();
mySC[0].Name = "Income";
mySC[1].Name = "Cost";

// Add the random data.
Chart.SeriesCollection.Add(mySC);

ChartArea cArea = new ChartArea(withTrend(mySC[0] - mySC[1], ""));
cArea.SeriesCollection[0].Name = "Net Profit";
Chart.ExtraChartAreas.Add(cArea);

// new legendbox for the second chart area.
cArea.LegendBox = new LegendBox();
cArea.LegendBox.DefaultCorner = BoxCorner.Round;
cArea.LegendBox.Position = new Point(83, 165);
cArea.LegendBox.Background.ShadingEffectMode = ShadingEffectMode.Five;
cArea.LegendBox.Background.Color = Color.White;
Chart2.TempDirectory = "temp";
Chart2.ObjectChart = new dotnetCHARTING.Label(getGridTextMontly(mySC[0]));

Chart3.TempDirectory = "temp";
dotnetCHARTING.Label label3 = new dotnetCHARTING.Label(getGridTextKPIs());
label3.Font = new Font("Arial", 10);
Chart3.ObjectChart =label3;
}
string getGridTextKPIs()
{
// Bullet target values
float avCTarget = 90;
float avGTarget = 190;
float avNTarget = 100;

// Define some block styles
string headerStyle = "<block fStyle='bold' fSize='10' hAlign='Center'>";
string extras = " width='135' shading='7'";
StringBuilder sb = new StringBuilder();

// Header row
sb.Append(headerStyle + "KPI" + headerStyle + "Value<Chart:Scale min='0' max='200' value='%Value%' " + extras + ">" + headerStyle + " Over Time");
sb.Append("<hr>");

// Row for each KPI
SeriesCollection avC = getAvCostOverTime();
float avCVal = (float)avC[0].Calculate("", Calculation.Average).YValue;
int avCPOT = (int)(avCVal / avCTarget * 100);
sb.Append("Average Cost / Day <block hAlign='Center'> " + avCVal.ToString("C") + "<Chart:Bullet values='" + avCPOT + ",100,60,80' min='0' max='200'" + extras + "><Chart:SparkLine values='" + avC[0].GetYValueList() + "'" + extras + ">");

SeriesCollection avG = getAvGrossOverTime();
float avGVal = (float)avG[0].Calculate("", Calculation.Average).YValue;
int avGPOT = (int)(avGVal / avGTarget * 100);
sb.Append("<row>Average Gross / Day <block hAlign='Center'> " + avGVal.ToString("C") + "<Chart:Bullet values='" + avGPOT + ",100,60,80' min='0' max='200'" + extras + "><Chart:SparkLine values='" + avG[0].GetYValueList() + "'" + extras + ">");

SeriesCollection avN = new SeriesCollection(avG[0] - avC[0]);
float avNVal = (float)avN[0].Calculate("", Calculation.Average).YValue;
int avNPOT = (int)(avNVal / avNTarget * 100);
sb.Append("<row>Average Net / Day <block hAlign='Center'> " + avNVal.ToString("C") + "<Chart:Bullet values='" + avNPOT + ",100,60,80' min='0' max='200'" + extras + "><Chart:SparkLine values='" + avN[0].GetYValueList() + "'" + extras + ">");

return sb.ToString();
}

string getGridTextMontly(Series s)
{
StringBuilder sb = new StringBuilder();

// Define some block styles
string headerStyle = "<block fStyle='bold' fSize='10' hAlign='Center'>";

// Setup header row
sb.Append(headerStyle + "Month" + headerStyle + "Total<Chart:Scale min='0' max='50000' value='$%Value' width='80'>" + headerStyle + " Daily");
sb.Append("<hr>");

//row for each element(Month)
int i = 0;
foreach (Element e in s.Elements)
{
string daily = getMonthValues(i + 1);
// Add name and value
sb.Append("<block fStyle='Bold' vAlign='Center'>" + e.Name + "<block hAlign='Center' vAlign='Center' hAligh='Right'>" + e.YValue.ToString("C") );
// Add bar and sparkline
sb.Append("<Chart:Bar min='0' max='50000' value='" + e.YValue + "' width='80' shading='7'><Chart:Sparkline values='" + daily + "' height='25' width='80'>");

if (i++ < s.Elements.Count - 1)
sb.Append("<hr>");
}
return sb.ToString();
}

string getMonthValues(int month)
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.StartDate = new System.DateTime(2022, month, 1, 0, 0, 0);
de.EndDate = de.StartDate.AddMonths(1);
de.DateGrouping = TimeInterval.Month;

de.SqlStatement = @"SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate";

SeriesCollection sc = de.GetSeries();
return sc[0].GetYValueList();
}

// Takes a series and returns a series collection that includes a trend series as well.
SeriesCollection withTrend(Series s, string name)
{
SeriesCollection result = new SeriesCollection();

Series trend = (new SeriesCollection(s)).Calculate(name, Calculation.TrendLineLinear);
trend.Type = SeriesType.Line;
trend.DefaultElement.Marker.Visible = false;
trend.LegendEntry.Visible = false;
trend.DefaultElement.Color = Color.Black;
trend.Line.EndCap = LineCap.ArrowAnchor;
trend.Line.AnchorCapScale = 2;
trend.Line.Width = 2;

if (trend.Elements.Count > 0)
{
s.YAxis = trend.YAxis = new Axis();
AxisMarker am = new AxisMarker("", Color.Red, trend[0].YValue);
am.LegendEntry.Visible = false;
am.Line.DashStyle = DashStyle.Dash;
s.YAxis.Markers.Add(am);

}
result.Add(s, trend);
return result;
}

SeriesCollection getSalesVsCost()
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.StartDate = new System.DateTime(2020, 1, 1, 0, 0, 0);
de.EndDate = new System.DateTime(2020, 12, 31, 23, 59, 59);
de.DateGrouping = TimeInterval.Year;
de.SqlStatement = @"SELECT OrderDate,Total,CostOfGoods FROM Purchases WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate";
de.DataFields = "XAxis=OrderDate,YAxis=Total,YAxis=CostOfGoods";
return de.GetSeries();
}

SeriesCollection getAvCostOverTime()
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.StartDate = new System.DateTime(2020, 1, 1, 0, 0, 0);
de.EndDate = new System.DateTime(2020, 12, 31, 23, 59, 59);
de.DateGrouping = TimeInterval.Year;
de.DateGroupingCalculation = Calculation.Average;
de.SqlStatement = @"SELECT OrderDate,CostOfGoods FROM Purchases WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate";
return de.GetSeries();
}

SeriesCollection getAvGrossOverTime()
{
DataEngine de = new DataEngine(ConfigurationManager.AppSettings["DNCConnectionString"]);
de.StartDate = new System.DateTime(2020, 1, 1, 0, 0, 0);
de.EndDate = new System.DateTime(2020, 12, 31, 23, 59, 59);
de.DateGrouping = TimeInterval.Year;
de.DateGroupingCalculation = Calculation.Average;
de.SqlStatement = @"SELECT OrderDate,Total FROM Purchases WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate";
return de.GetSeries();
}
























</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<table style="width: 800px">
<tr>
<td>
<dotnet:Chart ID="Chart" runat="server" />
<dotnet:Chart ID="Chart3" runat="server" />
</td>
<td>
<dotnet:Chart ID="Chart2" runat="server" />
</td>
</tr>
<tr>
<td colspan="2">
<table style="width: 100%">
<tr>
<td>

</td>
<td>
</td>
</tr>
</table>
</td>
</tr>
</table>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING" %>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
' Demonstrates a database driven digital dashboards utilizing a number of chart types including InfoGrids and MicroCharts.

Chart.TempDirectory = "temp"
Chart.ShadingEffectMode = ShadingEffectMode.Seven
Chart.Type = ChartType.Combo
Chart.Size = "500x300"
Chart.ShowDateInTitle = False
Chart.Title = "2020 Sales"
Chart.TitleBox.Position = TitleBoxPosition.FullWithLegend
Chart.DefaultFormatString = "Currency"
Chart.TitleBox.CornerTopLeft = BoxCorner.Round
Chart.TitleBox.CornerTopRight = BoxCorner.Round
Chart.DefaultAxis.TickNumberMaximum = 7
Chart.DefaultLegendBox.DefaultEntry.Name = "<block fStyle='Bold' fSize='9'>%Name"
Chart.DefaultChartArea.Line.Color = Color.FromArgb(180, 220, 220, 220)
Chart.TitleBox.Background.ShadingEffectMode = ShadingEffectMode.Five
Chart.TitleBox.Background.Color = Color.White
Dim mySC As SeriesCollection = getSalesVsCost()
mySC(0).Name = "Income"
mySC(1).Name = "Cost"

' Add the random data.
Chart.SeriesCollection.Add(mySC)

Dim cArea As ChartArea = New ChartArea(withTrend(mySC(0) - mySC(1), ""))
cArea.SeriesCollection(0).Name = "Net Profit"
Chart.ExtraChartAreas.Add(cArea)

' new legendbox for the second chart area.
cArea.LegendBox = New LegendBox()
cArea.LegendBox.DefaultCorner = BoxCorner.Round
cArea.LegendBox.Position = New Point(83, 165)
cArea.LegendBox.Background.ShadingEffectMode = ShadingEffectMode.Five
cArea.LegendBox.Background.Color = Color.White
Chart2.TempDirectory = "temp"
Chart2.ObjectChart = New dotnetCHARTING.Label(getGridTextMontly(mySC(0)))

Chart3.TempDirectory = "temp"
Dim label3 As dotnetCHARTING.Label = New dotnetCHARTING.Label(getGridTextKPIs())
label3.Font = New Font("Arial", 10)
Chart3.ObjectChart =label3
End Sub
Function getGridTextKPIs() As String
' Bullet target values
Dim avCTarget As Single = 90
Dim avGTarget As Single = 190
Dim avNTarget As Single = 100

' Define some block styles
Dim headerStyle As String = "<block fStyle='bold' fSize='10' hAlign='Center'>"
Dim extras As String = " width='135' shading='7'"
Dim sb As StringBuilder = New StringBuilder()

' Header row
sb.Append(headerStyle & "KPI" & headerStyle & "Value<Chart:Scale min='0' max='200' value='%Value%' " & extras & ">" & headerStyle & " Over Time")
sb.Append("<hr>")

' Row for each KPI
Dim avC As SeriesCollection = getAvCostOverTime()
Dim avCVal As Single = CSng(avC(0).Calculate("", Calculation.Average).YValue)
Dim avCPOT As Integer = CInt(Fix(avCVal / avCTarget * 100))
sb.Append("Average Cost / Day <block hAlign='Center'> " & avCVal.ToString("C") & "<Chart:Bullet values='" & avCPOT & ",100,60,80' min='0' max='200'" & extras & "><Chart:SparkLine values='" & avC(0).GetYValueList() & "'" & extras & ">")

Dim avG As SeriesCollection = getAvGrossOverTime()
Dim avGVal As Single = CSng(avG(0).Calculate("", Calculation.Average).YValue)
Dim avGPOT As Integer = CInt(Fix(avGVal / avGTarget * 100))
sb.Append("<row>Average Gross / Day <block hAlign='Center'> " & avGVal.ToString("C") & "<Chart:Bullet values='" & avGPOT & ",100,60,80' min='0' max='200'" & extras & "><Chart:SparkLine values='" & avG(0).GetYValueList() & "'" & extras & ">")

Dim avN As SeriesCollection = New SeriesCollection(avG(0) - avC(0))
Dim avNVal As Single = CSng(avN(0).Calculate("", Calculation.Average).YValue)
Dim avNPOT As Integer = CInt(Fix(avNVal / avNTarget * 100))
sb.Append("<row>Average Net / Day <block hAlign='Center'> " & avNVal.ToString("C") & "<Chart:Bullet values='" & avNPOT & ",100,60,80' min='0' max='200'" & extras & "><Chart:SparkLine values='" & avN(0).GetYValueList() & "'" & extras & ">")

Return sb.ToString()
End Function

Function getGridTextMontly(ByVal s As Series) As String
Dim sb As StringBuilder = New StringBuilder()

' Define some block styles
Dim headerStyle As String = "<block fStyle='bold' fSize='10' hAlign='Center'>"

' Setup header row
sb.Append(headerStyle & "Month" & headerStyle & "Total<Chart:Scale min='0' max='50000' value='$%Value' width='80'>" & headerStyle & " Daily")
sb.Append("<hr>")

'row for each element(Month)
Dim i As Integer = 0
For Each e As Element In s.Elements
Dim daily As String = getMonthValues(i + 1)
' Add name and value
sb.Append("<block fStyle='Bold' vAlign='Center'>" & e.Name & "<block hAlign='Center' vAlign='Center' hAligh='Right'>" & e.YValue.ToString("C"))
' Add bar and sparkline
sb.Append("<Chart:Bar min='0' max='50000' value='" & e.YValue & "' width='80' shading='7'><Chart:Sparkline values='" & daily & "' height='25' width='80'>")
If i < s.Elements.Count - 1 Then
sb.Append("<hr>")
End If
i = i + 1
Next e
Return sb.ToString()
End Function

Function getMonthValues(ByVal month As Integer) As String
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.StartDate = New System.DateTime(2022, month, 1, 0, 0, 0)
de.EndDate = de.StartDate.AddMonths(1)
de.DateGrouping = TimeInterval.Month

de.SqlStatement = "SELECT OrderDate,Sum(Quantity) FROM Orders WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# GROUP BY Orders.OrderDate ORDER BY Orders.OrderDate"

Dim sc As SeriesCollection = de.GetSeries()
Return sc(0).GetYValueList()
End Function

' Takes a series and returns a series collection that includes a trend series as well.
Function withTrend(ByVal s As Series, ByVal name As String) As SeriesCollection
Dim result As SeriesCollection = New SeriesCollection()

Dim trend As Series = (New SeriesCollection(s)).Calculate(name, Calculation.TrendLineLinear)
trend.Type = SeriesType.Line
trend.DefaultElement.Marker.Visible = False
trend.LegendEntry.Visible = False
trend.DefaultElement.Color = Color.Black
trend.Line.EndCap = LineCap.ArrowAnchor
trend.Line.AnchorCapScale = 2
trend.Line.Width = 2

If trend.Elements.Count > 0 Then
trend.YAxis = New Axis()
s.YAxis = trend.YAxis
Dim am As AxisMarker = New AxisMarker("", Color.Red, trend(0).YValue)
am.LegendEntry.Visible = False
am.Line.DashStyle = DashStyle.Dash
s.YAxis.Markers.Add(am)

End If
result.Add(s, trend)
Return result
End Function

Function getSalesVsCost() As SeriesCollection
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.StartDate = New System.DateTime(2020, 1, 1, 0, 0, 0)
de.EndDate = New System.DateTime(2020, 12, 31, 23, 59, 59)
de.DateGrouping = TimeInterval.Year
de.SqlStatement = "SELECT OrderDate,Total,CostOfGoods FROM Purchases WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"
de.DataFields = "XAxis=OrderDate,YAxis=Total,YAxis=CostOfGoods"
Return de.GetSeries()
End Function

Function getAvCostOverTime() As SeriesCollection
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.StartDate = New System.DateTime(2020, 1, 1, 0, 0, 0)
de.EndDate = New System.DateTime(2020, 12, 31, 23, 59, 59)
de.DateGrouping = TimeInterval.Year
de.DateGroupingCalculation = Calculation.Average
de.SqlStatement = "SELECT OrderDate,CostOfGoods FROM Purchases WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"
Return de.GetSeries()
End Function

Function getAvGrossOverTime() As SeriesCollection
Dim de As DataEngine = New DataEngine(ConfigurationManager.AppSettings("DNCConnectionString"))
de.StartDate = New System.DateTime(2020, 1, 1, 0, 0, 0)
de.EndDate = New System.DateTime(2020, 12, 31, 23, 59, 59)
de.DateGrouping = TimeInterval.Year
de.DateGroupingCalculation = Calculation.Average
de.SqlStatement = "SELECT OrderDate,Total FROM Purchases WHERE OrderDate >= #STARTDATE# AND OrderDate <= #ENDDATE# ORDER BY OrderDate"
Return de.GetSeries()
End Function
























</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>.netCHARTING Sample</title>
</head>
<body>
<div align="center">
<table style="width: 800px">
<tr>
<td>
<dotnet:Chart ID="Chart" runat="server" />
<dotnet:Chart ID="Chart3" runat="server" />
</td>
<td>
<dotnet:Chart ID="Chart2" runat="server" />
</td>
</tr>
<tr>
<td colspan="2">
<table style="width: 100%">
<tr>
<td>

</td>
<td>
</td>
</tr>
</table>
</td>
</tr>
</table>
</div>
</body>
</html>
