Axis Class
Represents an axis drawn on a ChartArea.

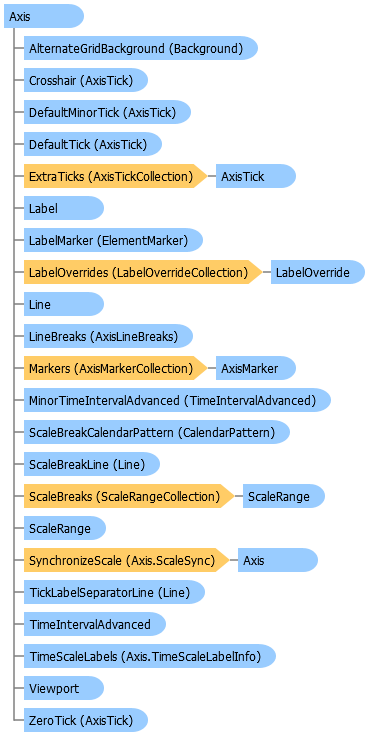

Object Model
Axis ClassBackground ClassAxisTick ClassAxisTick ClassAxisTick ClassAxisTickCollection ClassAxisTick ClassLabel ClassElementMarker ClassLabelOverrideCollection ClassLabelOverride StructureLine ClassAxisLineBreaks ClassAxisMarkerCollection ClassAxisMarker ClassTimeIntervalAdvanced ClassCalendarPattern ClassLine ClassScaleRangeCollection ClassScaleRange ClassScaleRange ClassAxis.ScaleSync ClassAxis ClassLine ClassTimeIntervalAdvanced ClassAxis.TimeScaleLabelInfo ClassViewport ClassAxisTick Class
Syntax
'Declaration

Public Class Axis
'Usage

Dim instance As Axis
public class Axis
Remarks
The axis object is a powerful class that does the following.
  • Defines objects used to draw the axis and fill sections of a ChartArea such as grid lines.
  • Facilitates tick label text formatting and numerous manipulation mechanisms.
  • Defines data element layout and order.
  • Defines an axis Scale, range, and tick frequency.
  • Calculates copies of itself that can perform unit conversions between over one thousand defined units, mark time ranges with a specified TimeInterval, and manipulate each tick label with a specified custom method.
Axes can behave in 3 different modes.
Mode Description
Value Axis The value axis dynamically displays a numeric or DateTime range. Properties such as Scale, Interval, TimeInterval and others that relate to ranges apply to this type of axis. Using ChartType.Combo, the y axis is a value axis, with ChartType.Horizontal the x axis is.
Label Axis The label axis does not display a range of values but rather the names of elements or series. Using ChartType.Combo, the x axis is a label axis and with ChartType.Horizontal the y axis is. Using the DataEngine with DataEngine.DateGrouping generates elements with a numeric value in Element.YValue and a DateTime value in Element.XDateTime. Because the Combo chart's x axis is a label axis the date time value cannot be shown. To remedy this, the DataEngine also populates each element's Name property with a string representation of the DateTime value. This allows the x axis to show date values but it does not allow the use of advanced options such as setting the TimeInterval for those dates. To expose this functionality ChartType.Scatter must be used because the x axis for that chart type acts as a value axis.
Calculated Axis A calculated or shadow axis is created by using of the Axis.Calculate methods and must be added to the Chart.AxisCollection collection. It is drawn by the original axis and represents the same range but displays it in a different way.
Example
Axis Orientation
Inheritance Hierarchy
