Illustrated QuickStart
Getting Started > Illustrated QuickStart

Glossary Item Box

 This tutorial will illustrate the process of downloading the component to creating your first chart.

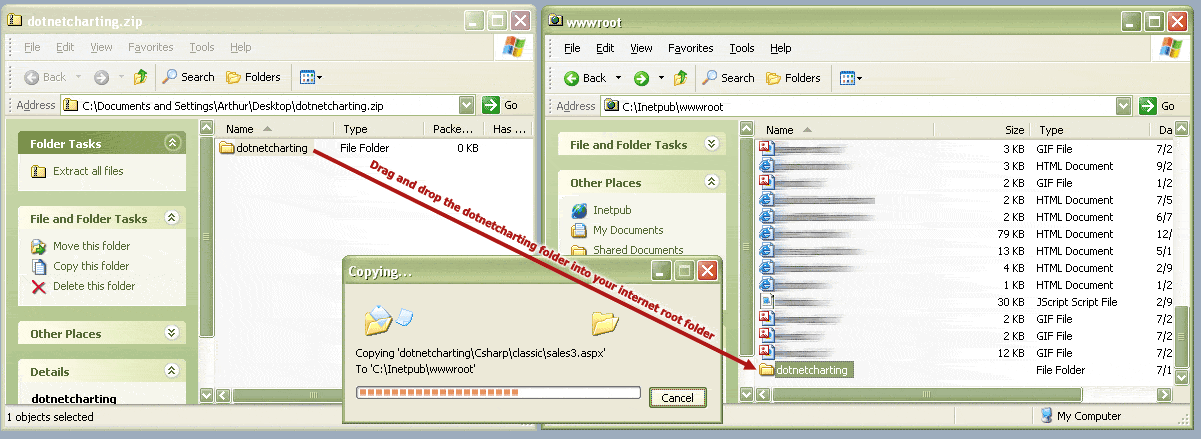

Show1. Unzip the download

On the left is the zip file, on the right is the folder into which the bundle is copied.



TroubleShooting
  - If not using Windows XP, a zip utility may be required.
  - If the zip file is not saved to your HD first, you may be a message saying the zip is corrupt. Save it before opening to solve the issue.

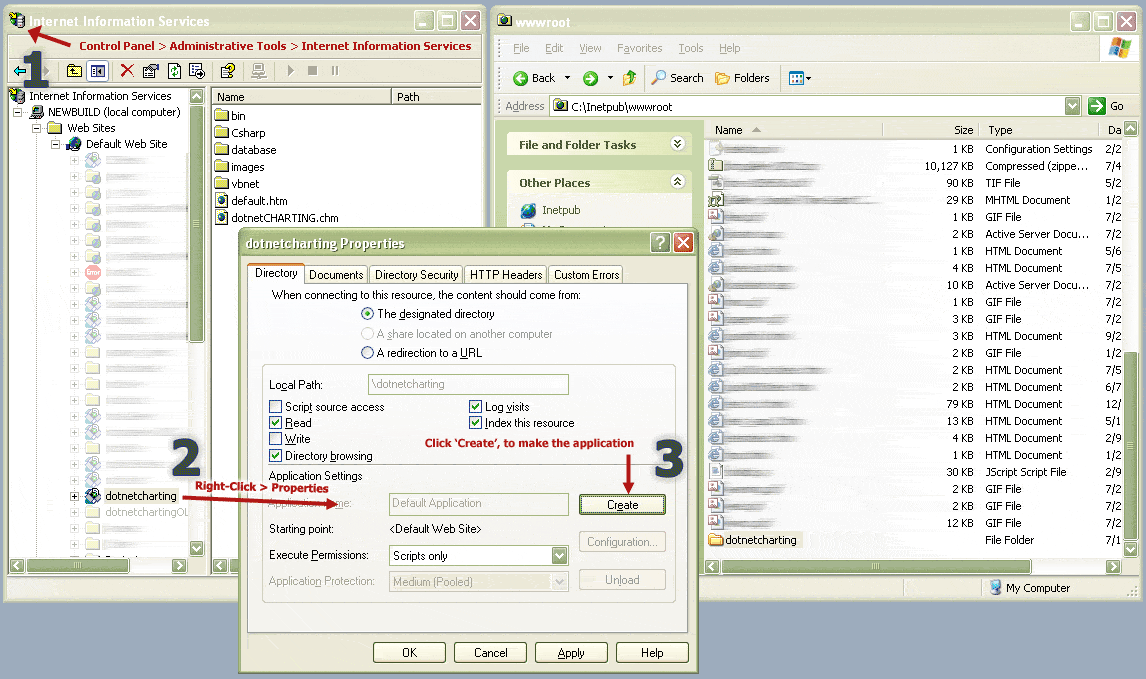

Show2. Create an application

 This section illustrates creating an application. For more details please see the Application Creation tutorial.

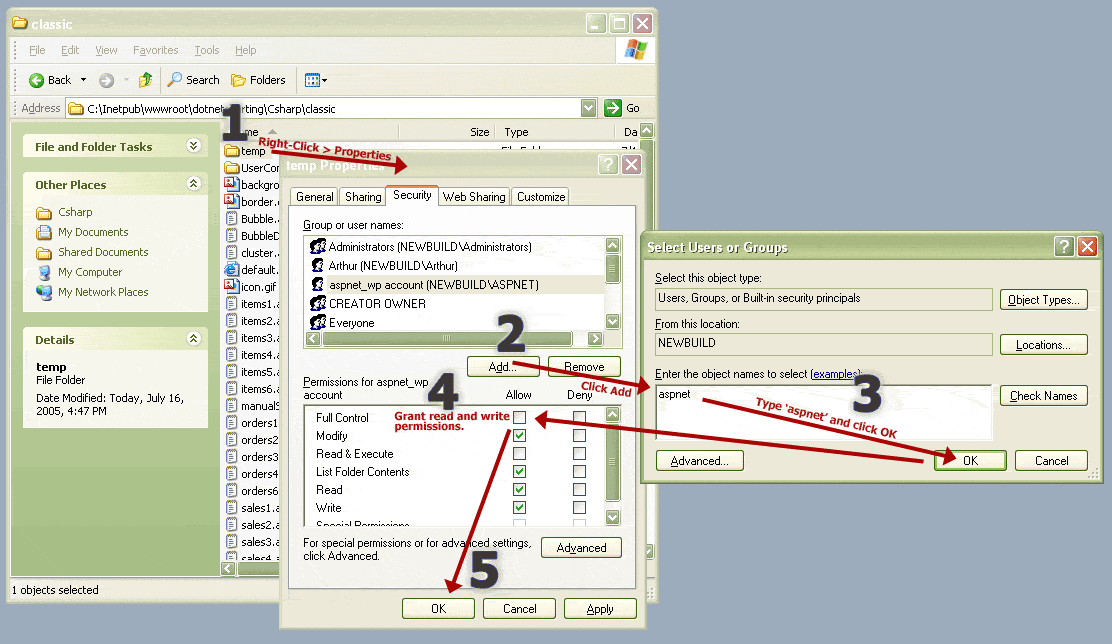

Show3. Setup permissions

For detailed information on setting permissions please see the installation instructions.

The folders that require the permissions are:

  • dotnetcharting/Samples/csharp/temp
  • dotnetcharting/Samples/csharp/gallery/temp
  • dotnetcharting/Samples/VisualBasic/temp
  • dotnetcharting/Samples/visualBasic/gallery/temp

  • ..

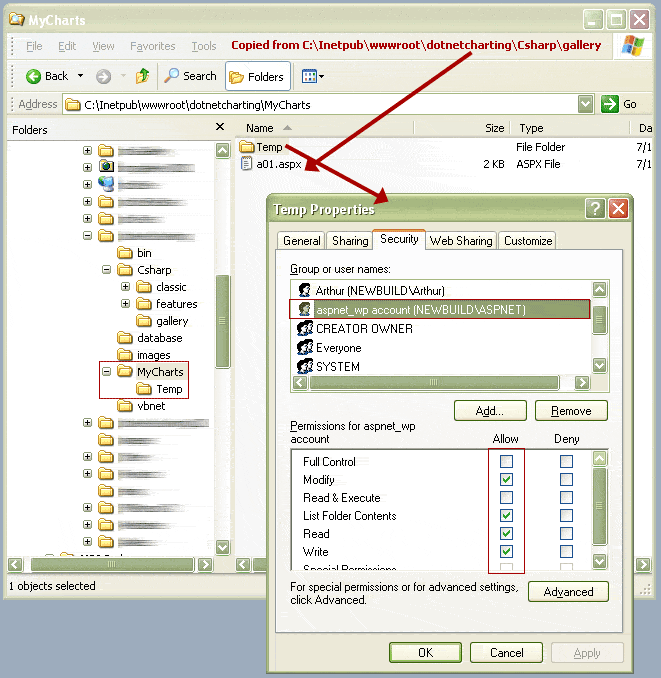

Show4. Setup your first chart.

Create a new folder under the dotnetcharting directory application to hold the new charts and the temp directory..

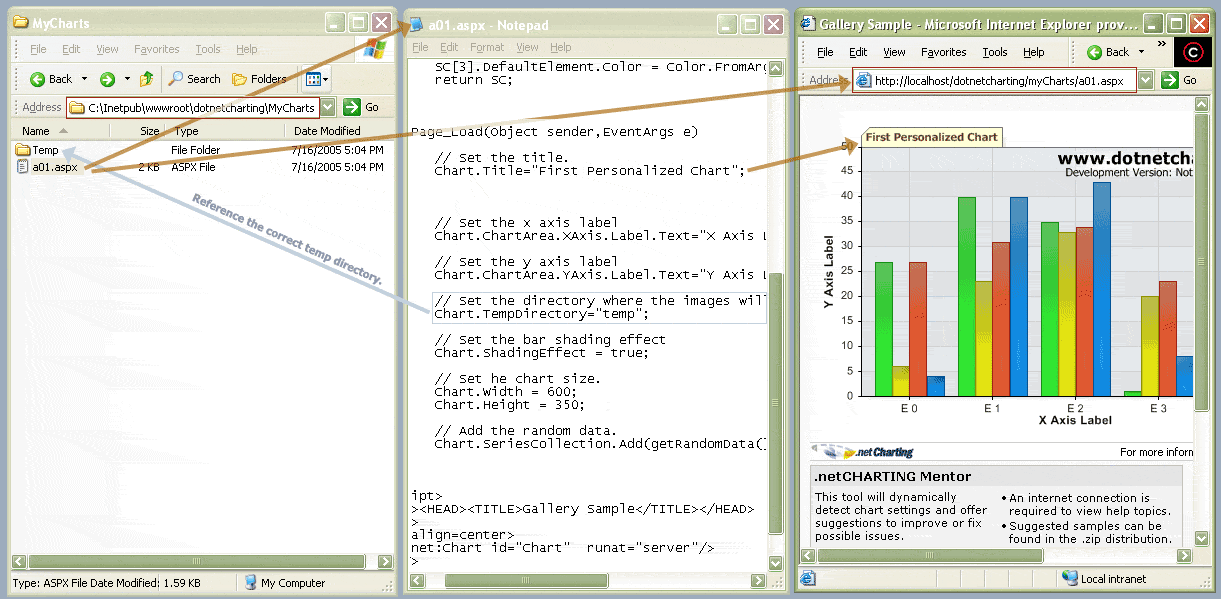

Show5. Edit your first chart
