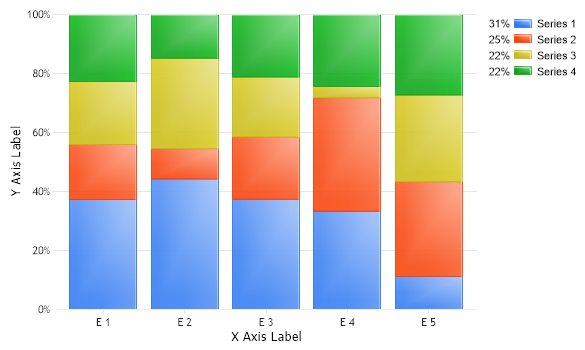

.net Charting Gallery Sample

Sample: Gallery/a092

<%@ Page Language="C#" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

SeriesCollection getRandomData()
{
      SeriesCollection SC = new SeriesCollection();
      Random myR = new Random();
      for(int a = 0; a < 4; a++)
      {
            Series s = new Series();
            s.Name = "Series " + a;
            for(int b = 0; b < 5; b++)
            {
                  Element e = new Element();
                  e.Name = "E " + b;
                  e.YValue = myR.Next(50);
                  s.Elements.Add(e);
            }
            SC.Add(s);
      }
// Set Different Colors for our Series
      SC[0].DefaultElement.Color = Color.FromArgb(49,255,49);
      SC[1].DefaultElement.Color = Color.FromArgb(255,255,0);
      SC[2].DefaultElement.Color = Color.FromArgb(255,99,49);
      SC[3].DefaultElement.Color = Color.FromArgb(0,156,255);
      return SC;
}

void Page_Load(Object sender,EventArgs e)
{
      // Set the title.
      Chart.Title="My Chart";

      // Set 3D
      Chart.Use3D = false;

      // Set the x axis label
      Chart.XAxis.Label.Text="X Axis Label";

      // Set the y axis label
      Chart.YAxis.Label.Text="Y Axis Label";

      // Set the y axis Scale
      Chart.YAxis.Scale = Scale.FullStacked;

      // Set the directory where the images will be stored.
      Chart.TempDirectory="temp";

      Chart.ShadingEffectMode = ShadingEffectMode.Five;
      Chart.DefaultElement.Transparency = 30;

      // Set he chart size.
      Chart.Width = 600;
      Chart.Height = 350;

      // Add the random data.
      Chart.SeriesCollection.Add(getRandomData());

}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component"%>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>

<script runat="server">

Function getRandomData() As SeriesCollection
      Dim SC As SeriesCollection = New SeriesCollection()
      Dim myR As Random = New Random()
      Dim a As Integer
      For a = 1 To 4
            Dim s As Series = New Series("Series " & a.ToString())
            Dim b As Integer
            For b= 1 To 5
                  Dim e As Element = New Element()
                  e.Name = "E " & b
                  e.YValue = myR.Next(50)
                  s.Elements.Add(e)
            Next b
            SC.Add(s)
      Next a
' Set Different Colors for our Series
      SC(0).DefaultElement.Color = Color.FromArgb(49,255,49)
      SC(1).DefaultElement.Color = Color.FromArgb(255,255,0)
      SC(2).DefaultElement.Color = Color.FromArgb(255,99,49)
      SC(3).DefaultElement.Color = Color.FromArgb(0,156,255)
      Return SC
End Function

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
      ' Set the title.
      Chart.Title="My Chart"

      ' Set 3D
      Chart.Use3D = False

      ' Set the x axis label
      Chart.XAxis.Label.Text="X Axis Label"

      ' Set the y axis label
      Chart.YAxis.Label.Text="Y Axis Label"

      ' Set the y axis Scale
      Chart.YAxis.Scale = Scale.FullStacked

      ' Set the directory where the images will be stored.
      Chart.TempDirectory="temp"

      Chart.ShadingEffectMode = ShadingEffectMode.Five
      Chart.DefaultElement.Transparency = 30

      ' Set he chart size.
      Chart.Size="600x350"

      ' Add the random data.
      Chart.SeriesCollection.Add(getRandomData())

End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
