Sample: Gallery/a022
|
<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<script runat="server">
void Page_Load(Object sender,EventArgs e)
{
Chart.Type = ChartType.Combo;//Horizontal;
Chart.Size = "600x350";
Chart.TempDirectory = "temp";
Chart.Debug = true;
Chart.Title = ".netCHARTING Gallery Sample";
Chart.Use3D = true;

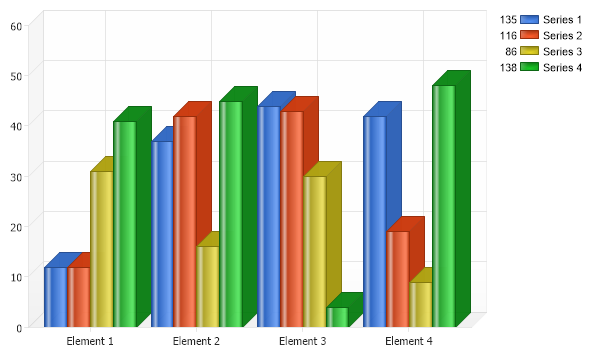

// Columns in 3D using ShadingEffectMode.Three
Chart.ShadingEffectMode = ShadingEffectMode.Three;
// *DYNAMIC DATA NOTE*
// This sample uses random data to populate the chart. To populate
// a chart with database data see the following resources:
// - Classic samples folder
// - Help File > Data Tutorials
// - Sample: features/DataEngine.aspx
SeriesCollection mySC = getRandomData();
// Add the random data.
Chart.SeriesCollection.Add(mySC);
}
SeriesCollection getRandomData()
{
SeriesCollection SC = new SeriesCollection();
Random myR = new Random();
for(int a = 1; a < 5; a++)
{
Series s = new Series();
s.Name = "Series " + a.ToString();
for(int b = 1; b < 5; b++)
{
Element e = new Element();
e.Name = "Element " + b.ToString();
e.YValue = myR.Next(50);
s.Elements.Add(e);
}
SC.Add(s);
}
// Set Different Colors for our Series
SC[0].DefaultElement.Color = Color.FromArgb(49,255,49);
SC[1].DefaultElement.Color = Color.FromArgb(255,255,0);
SC[2].DefaultElement.Color = Color.FromArgb(255,99,49);
SC[3].DefaultElement.Color = Color.FromArgb(0,156,255);
return SC;
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
|
<%@ Page Language="VB" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>
<script runat="server">
Sub Page_Load(sender As [Object], e As EventArgs)
Chart.Type = ChartType.Combo 'Horizontal;
Chart.Size = "600x350"
Chart.TempDirectory = "temp"
Chart.Debug = True
Chart.Title = ".netCHARTING Gallery Sample"
Chart.Use3D = True
' Columns in 3D using ShadingEffectMode.Three
Chart.ShadingEffectMode = ShadingEffectMode.Three
' *DYNAMIC DATA NOTE*
' This sample uses random data to populate the chart. To populate
' a chart with database data see the following resources:
' - Classic samples folder
' - Help File > Data Tutorials
' - Sample: features/DataEngine.aspx
Dim mySC As SeriesCollection = getRandomData()
' Add the random data.
Chart.SeriesCollection.Add(mySC)
End Sub 'Page_Load
Function getRandomData() As SeriesCollection
Dim SC As New SeriesCollection()
Dim myR As New Random(1)
Dim a As Integer
For a = 1 To 4
Dim s As New Series()
s.Name = "Series " + a.ToString()
Dim b As Integer
For b = 1 To 4
Dim e As New Element()
e.Name = "Element " + b.ToString()
e.YValue = myR.Next(50)
s.Elements.Add(e)
Next b
SC.Add(s)
Next a
' Set Different Colors for our Series
SC(0).DefaultElement.Color = Color.FromArgb(49, 255, 49)
SC(1).DefaultElement.Color = Color.FromArgb(255, 255, 0)
SC(2).DefaultElement.Color = Color.FromArgb(255, 99, 49)
SC(3).DefaultElement.Color = Color.FromArgb(0, 156, 255)
Return SC
End Function 'getRandomData
</script>
<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
|
|
