.net Charting Gallery Sample

Sample: Gallery/A0241

<%@ Page Language="C#" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<script runat="server">

void Page_Load(Object sender,EventArgs e)
{

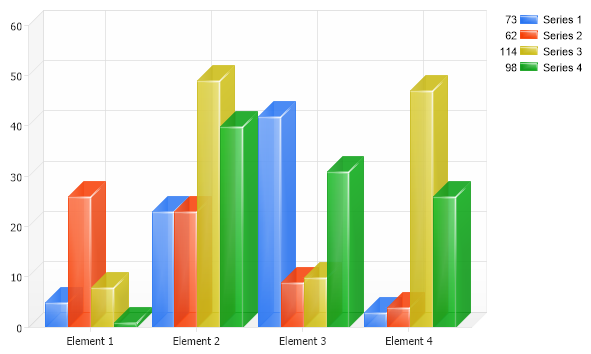

      // This sample demonstrates bars with shading effect mode Five in 3D.
      Chart.Type = ChartType.Combo;//Horizontal;
      Chart.Size = "600x350";
      Chart.TempDirectory = "temp";
      Chart.Debug = true;
      Chart.Title = ".netCHARTING Gallery Sample";
      Chart.Use3D = true;
      Chart.DefaultElement.Transparency = 30;

      // Columns in 3D using ShadingEffectMode.Five
      Chart.ShadingEffectMode = ShadingEffectMode.Five;


      // *DYNAMIC DATA NOTE*
      // This sample uses random data to populate the chart. To populate
      // a chart with database data see the following resources:
      // - Classic samples folder
      // - Help File > Data Tutorials
      // - Sample: features/DataEngine.aspx
      SeriesCollection mySC = getRandomData();

      // Add the random data.
      Chart.SeriesCollection.Add(mySC);

}

SeriesCollection getRandomData()
{
      SeriesCollection SC = new SeriesCollection();
      Random myR = new Random();
      for(int a = 1; a < 5; a++)
      {
            Series s = new Series();
            s.Name = "Series " + a.ToString();
            for(int b = 1; b < 5; b++)
            {
                  Element e = new Element();
                  e.Name = "Element " + b.ToString();
                  e.YValue = myR.Next(50);
                  s.Elements.Add(e);
            }
            SC.Add(s);
      }

      // Set Different Colors for our Series
      SC[0].DefaultElement.Color = Color.FromArgb(49,255,49);
      SC[1].DefaultElement.Color = Color.FromArgb(255,255,0);
      SC[2].DefaultElement.Color = Color.FromArgb(255,99,49);
      SC[3].DefaultElement.Color = Color.FromArgb(0,156,255);

      return SC;
}
</script>

<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>

<%@ Page Language="vb" Description="dotnetCHARTING Component" %>
<%@ Register TagPrefix="dotnet" Namespace="dotnetCHARTING" Assembly="dotnetCHARTING"%>
<%@ Import Namespace="System.Drawing" %>
<%@ Import Namespace="System.Drawing.Drawing2D" %>

<script runat="server">

Sub Page_Load(ByVal sender As Object, ByVal e As EventArgs)
      ' This sample demonstrates bars with shading effect mode Five in 3D.
      Chart.Type = ChartType.Combo 'Horizontal;
      Chart.Size = "600x350"
      Chart.TempDirectory = "temp"
      Chart.Debug = True
      Chart.Title = ".netCHARTING Gallery Sample"
      Chart.Use3D = True
      Chart.DefaultElement.Transparency = 30

      ' Columns in 3D using ShadingEffectMode.Five
      Chart.ShadingEffectMode = ShadingEffectMode.Five

      ' *DYNAMIC DATA NOTE*
      ' This sample uses random data to populate the chart. To populate
      ' a chart with database data see the following resources:
      ' - Classic samples folder
      ' - Help File > Data Tutorials
      ' - Sample: features/DataEngine.aspx
      Dim mySC As SeriesCollection = getRandomData()

      ' Add the random data.
      Chart.SeriesCollection.Add(mySC)

End Sub

Function getRandomData() As SeriesCollection
      Dim SC As SeriesCollection = New SeriesCollection()
      Dim myR As Random = New Random()
            Dim a As Integer
            For a = 1 To 4
            Dim s As Series = New Series("Series " & a.ToString())
            Dim b As Integer
            For b= 1 To 4
                  Dim e As Element = New Element()
                  e.Name = "Element " & b.ToString()
                  e.YValue = myR.Next(50)
                  s.Elements.Add(e)
            Next b
            SC.Add(s)
      Next a

      ' Set Different Colors for our Series
      SC(0).DefaultElement.Color = Color.FromArgb(49,255,49)
      SC(1).DefaultElement.Color = Color.FromArgb(255,255,0)
      SC(2).DefaultElement.Color = Color.FromArgb(255,99,49)
      SC(3).DefaultElement.Color = Color.FromArgb(0,156,255)

      Return SC
End Function
</script>

<html xmlns="http://www.w3.org/1999/xhtml"><head><title>Gallery Sample</title></head>
<body>
<div style="text-align:center">
<dotnet:Chart id="Chart" runat="server"/>
</div>
</body>
</html>
